- Standard: ISO 9001:2000 (No. 0203Q15774R1M)
- Australian Standard: AS/NZS 1576.1:1995
- Victoria Work Cover for Full Set configuration reciprocal to other states
- Material: Aluminium Alloy 6061-T6 with tube 50.8x2.0mm
- Safety work load: 272Kg per platform evenly distributed 548Kg per complete structure
- 3 year manufacture guarantee on all parts
PRE-CONFIGURE SETS
Customers are welcome to make their own configuration to meet their required working height. Please contact us for a free quote today!

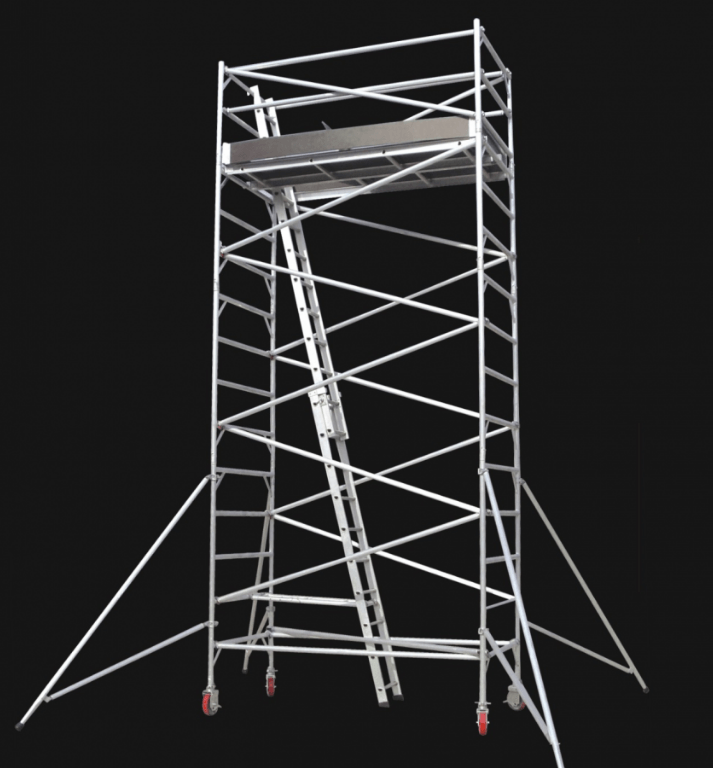

SCAFFOLD DS06F
Scaffold max size: 1.25W x 2.495L x 6.35H (m)Platform Max height: 5.4m

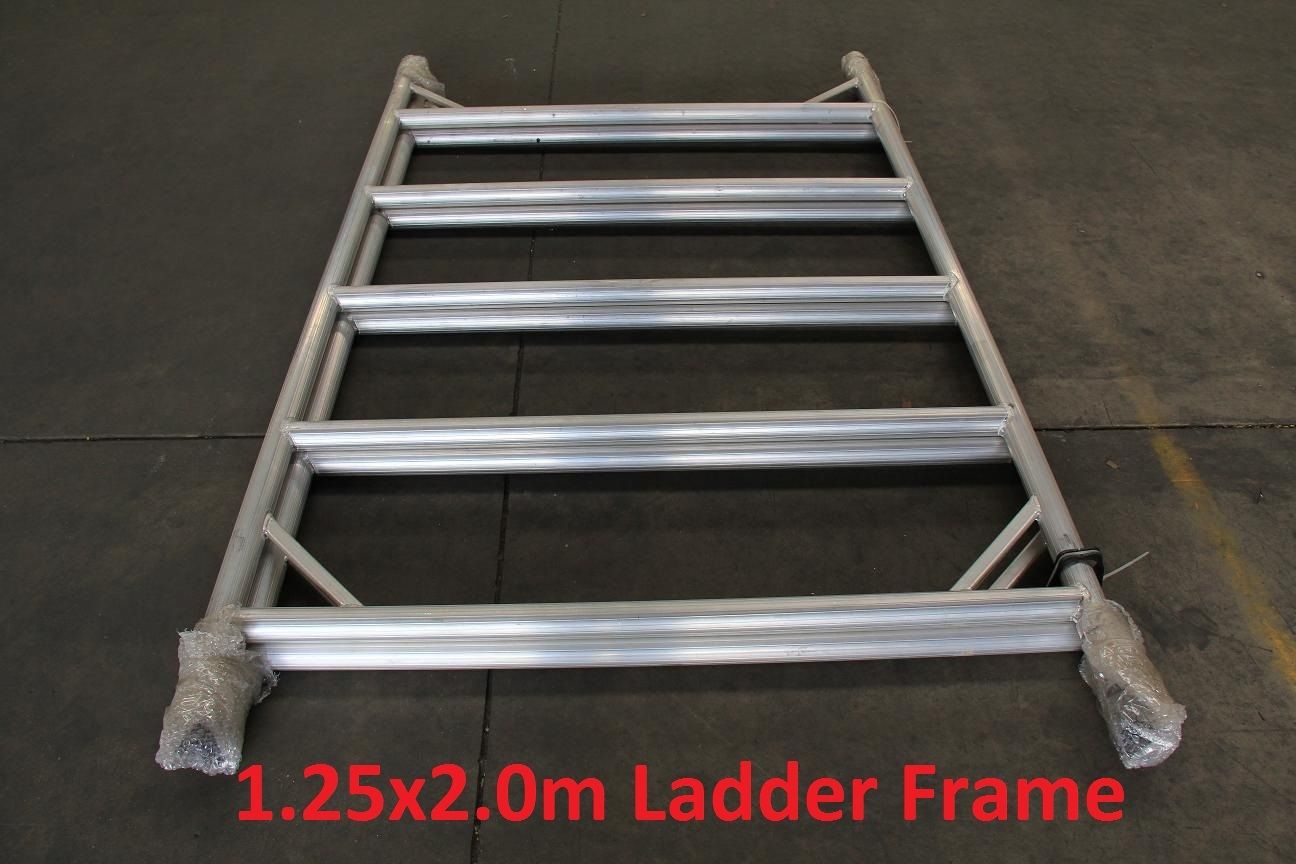

- 2x 1.3x2.0m Ladder Frame

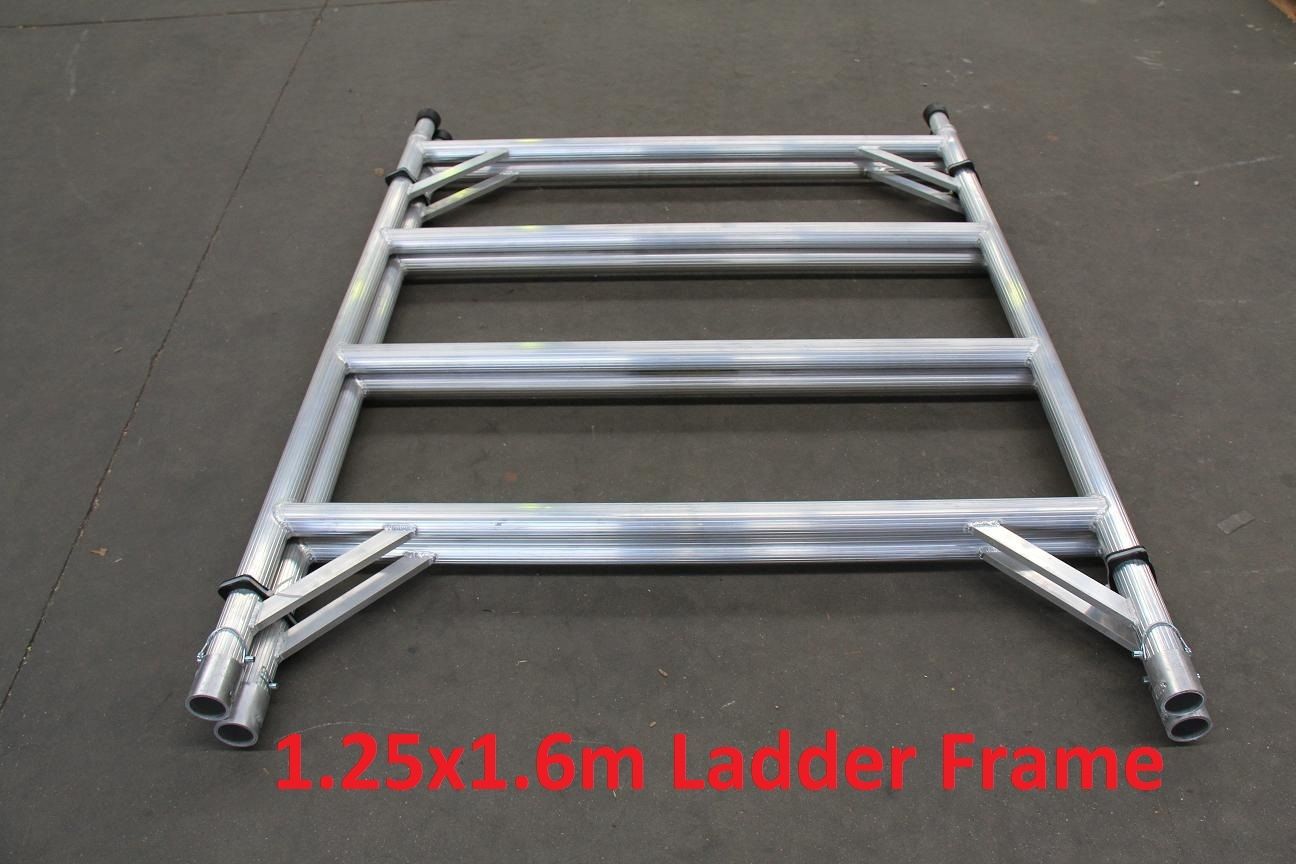

- 2x 1.3x1.6m Ladder Frame

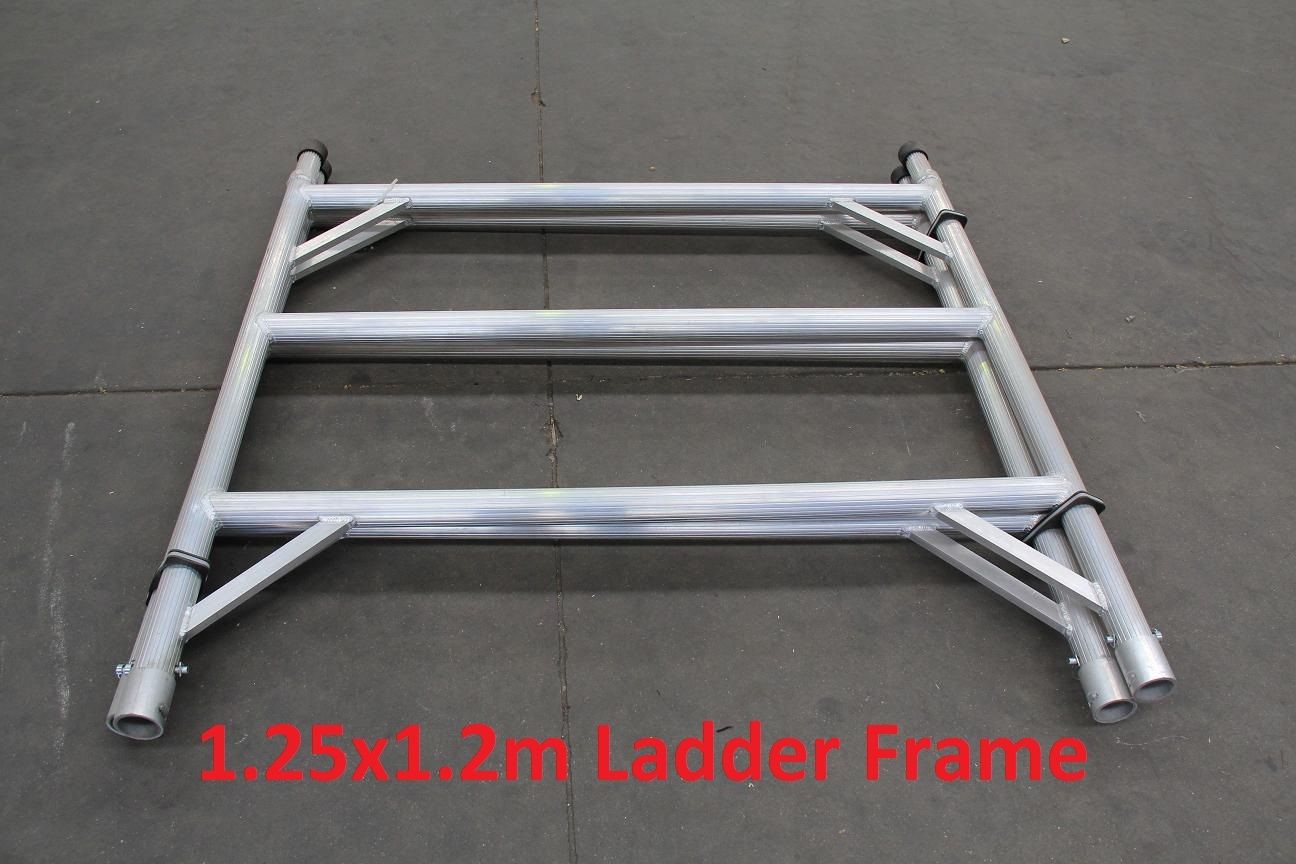

- 2x 1.3x1.2m Ladder Frame

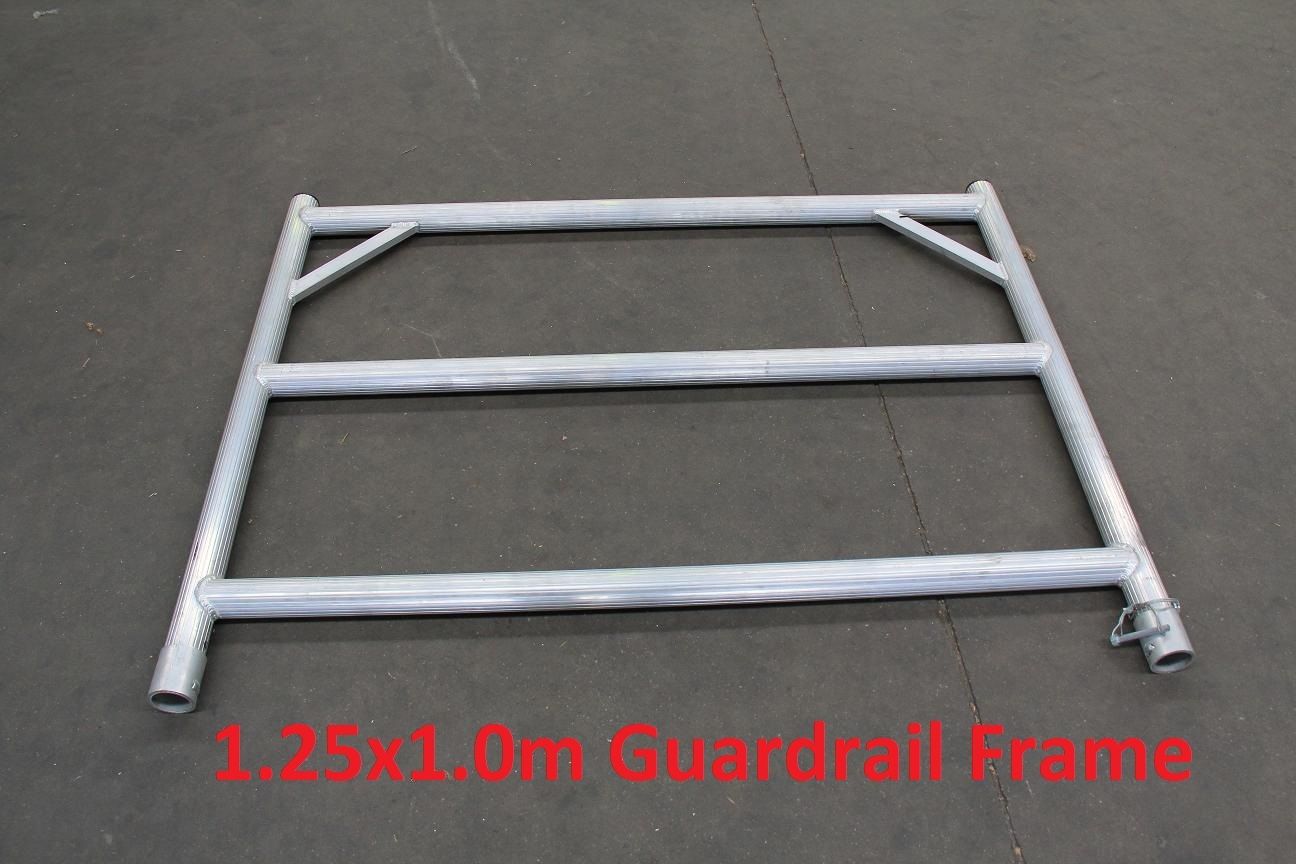

- 2x 1.3 x1.0m Guard Rail

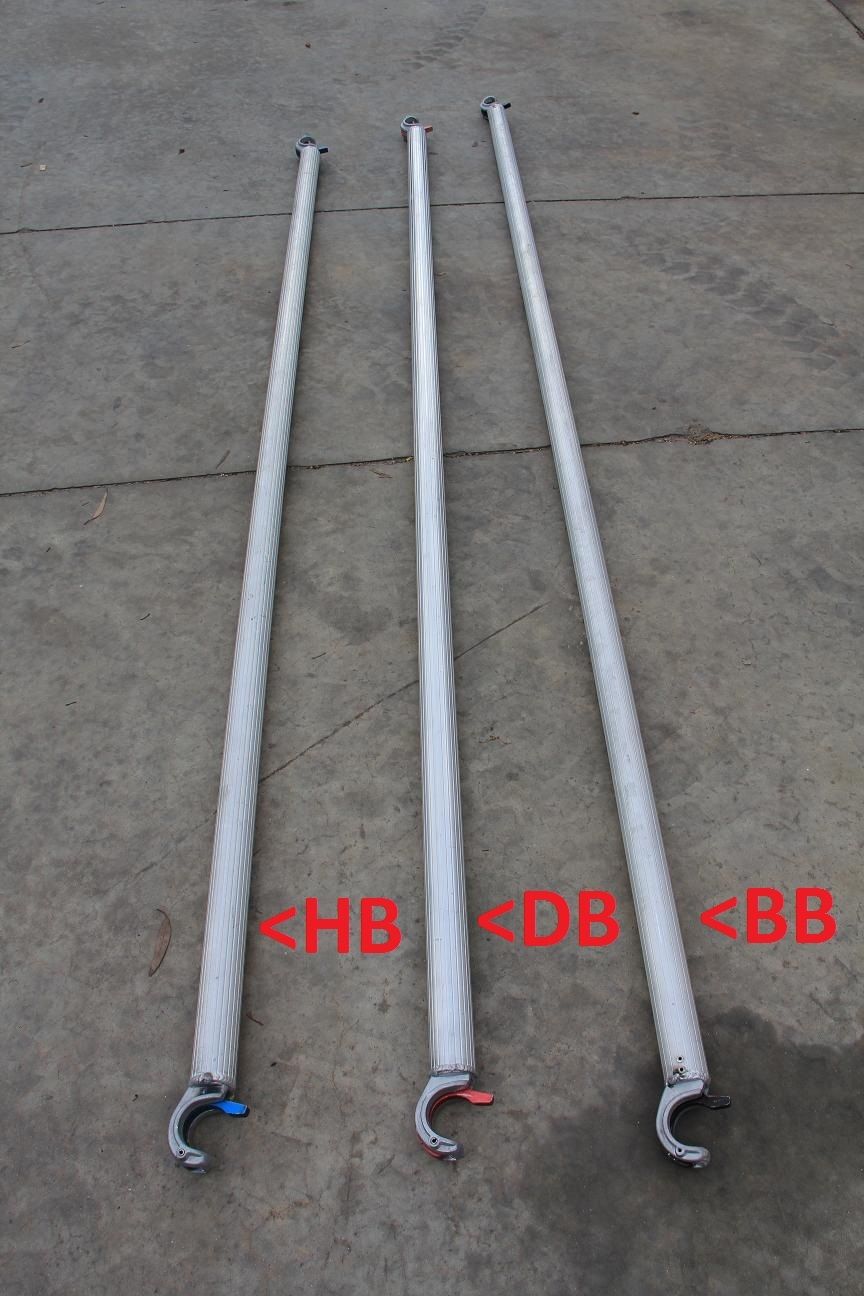

- 1x Bottom Brace (BB)
- 12x Diagonal Brace (DB)
- 6x Horizontal Brace (HB)

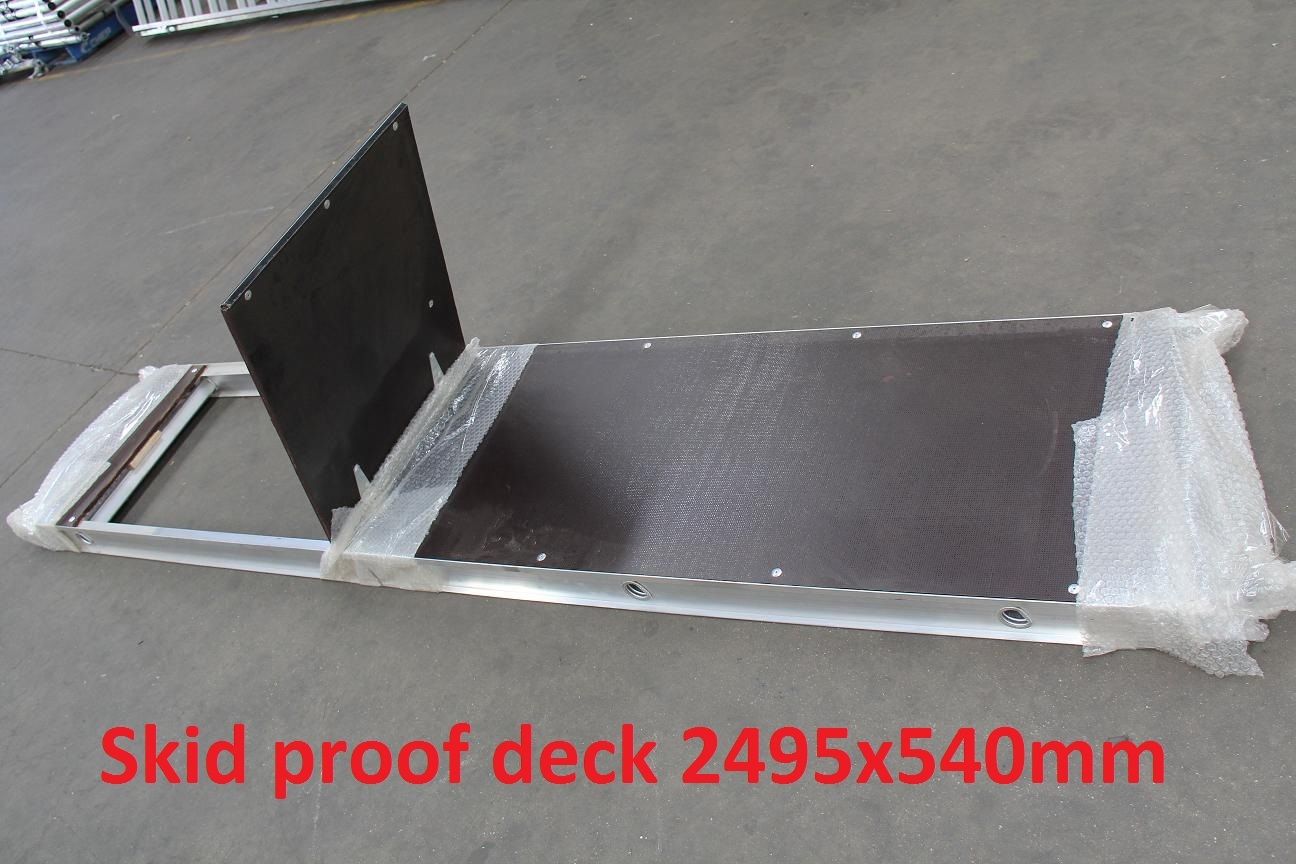

- 1x Skid proof deck without hatch 2495x540mm
- 1x Skid proof deck with hatch 2495x540mm

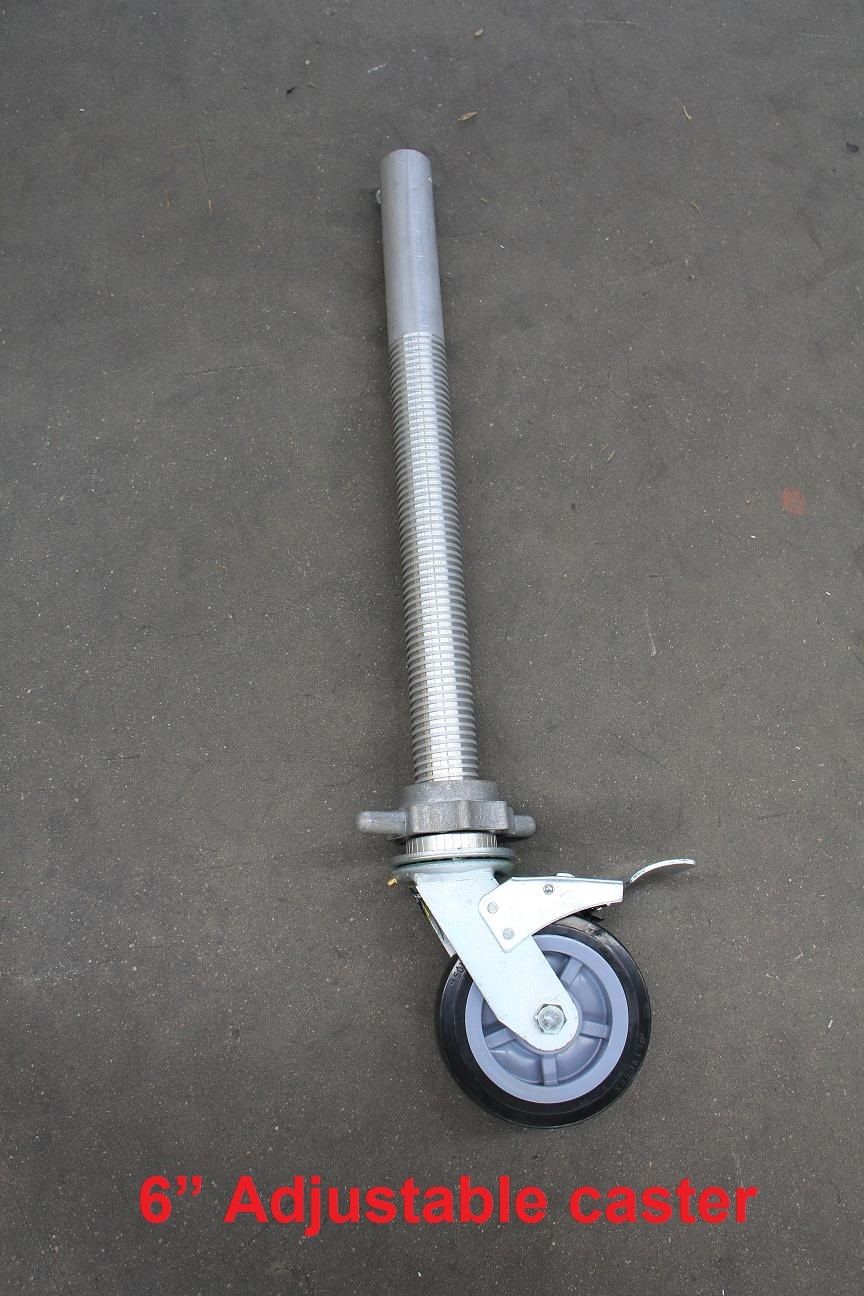

- 4x 6” Adjustable caster with thread stem
- 1x Extension ladder with bracket, Fold to 3.5m extend to 6m

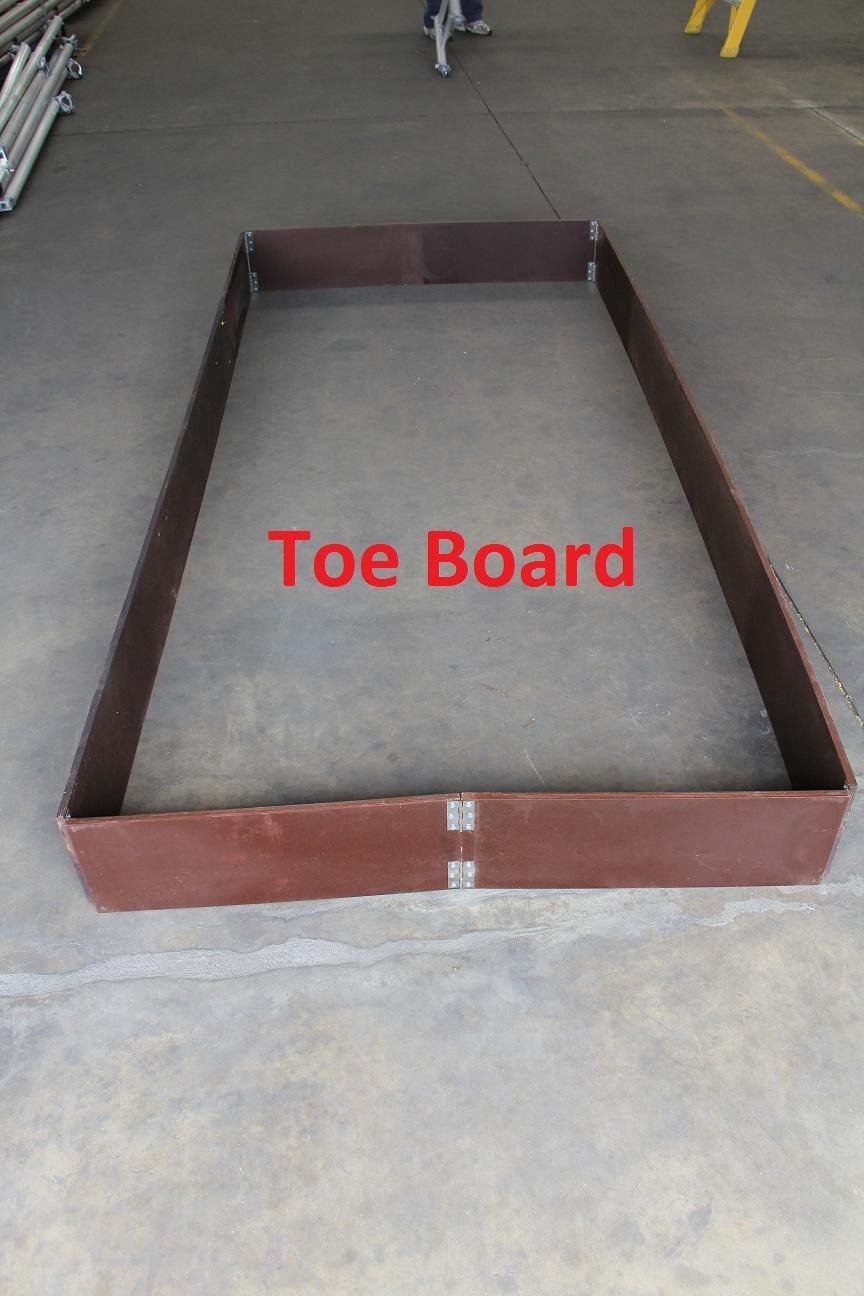

- No.T4 2442x1166mm Aluminium toe board Set

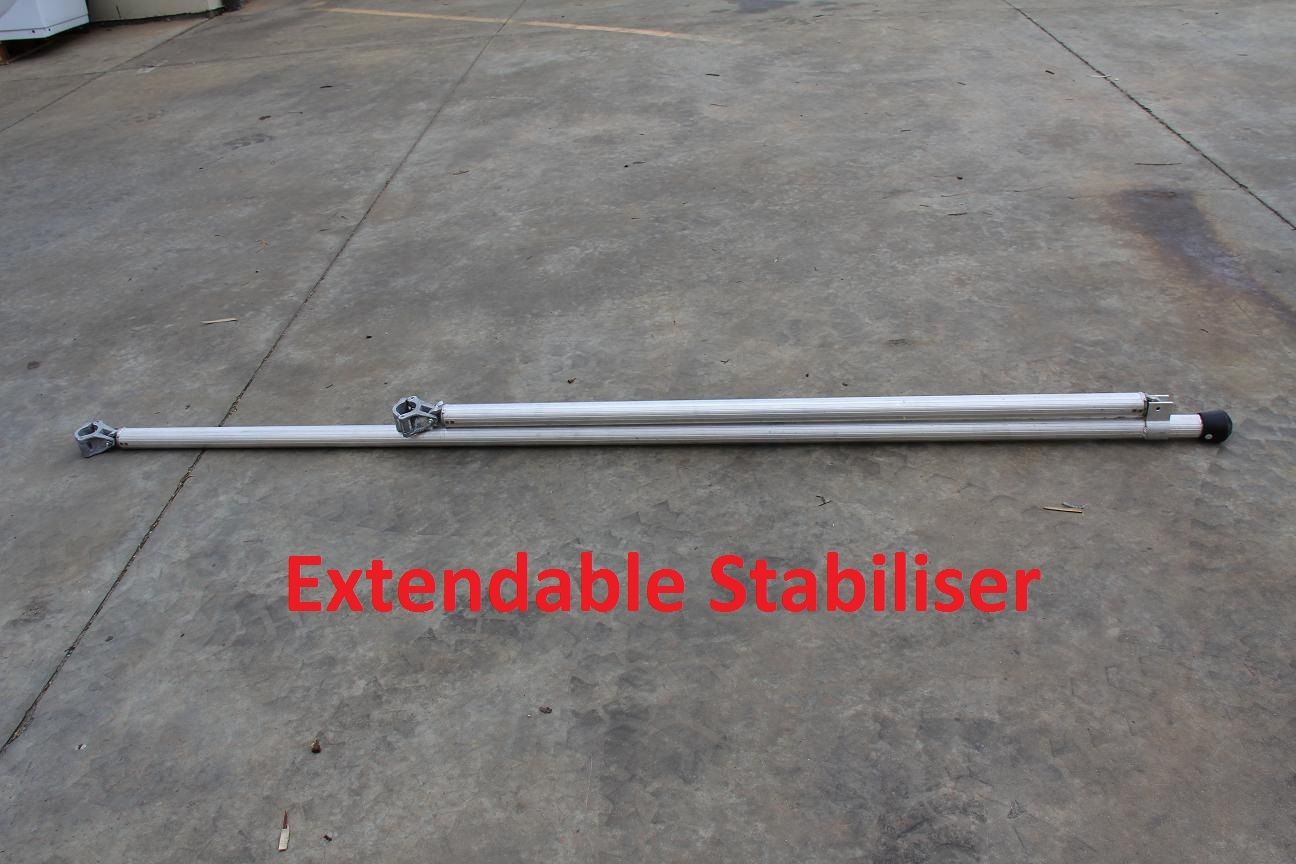

- 4x Extendable Stabilisers
SCAFFOLD DS06
Scaffold max size: 1.25W x 2.495L x 6.8H (m)Platform Max height: 5.8m
- 2x 1.3x2.0m Ladder Frame
- 4x 1.3x1.6m Ladder Frame
- 2x 1.3x1.0m Guard Rail
- 1x Bottom Brace (BB)
- 9x Diagonal Brace (DB)
- 6x Horizontal Brace (HB)
- 1x Skid proof deck without hatch 2495x540mm
- 1x Skid proof deck with hatch 2495x540mm
- 4x 6” Adjustable caster with thread stem
- 2x Extendable Stabiliser
SCAFFOLD DS05
Scaffold max size: 1.25W x 2.495L x 5.6H (m)Platform Max height: 4.6m
- 4x 1.3x2.0m Ladder Frame
- 2x 1.3 x1.0m Guard Rail
- 1x Bottom Brace (BB)
- 6x Diagonal Brace (DB)
- 6x Horizontal Brace (HB)
- 1x Skid proof deck with hatch 2495x540mm
- 1x Skid proof deck without hatch 2495x540mm
- 4x 6” Adjustable caster with thread stem
- 2x Extendable Stabiliser
EXTRA SCAFFOLD PARTS

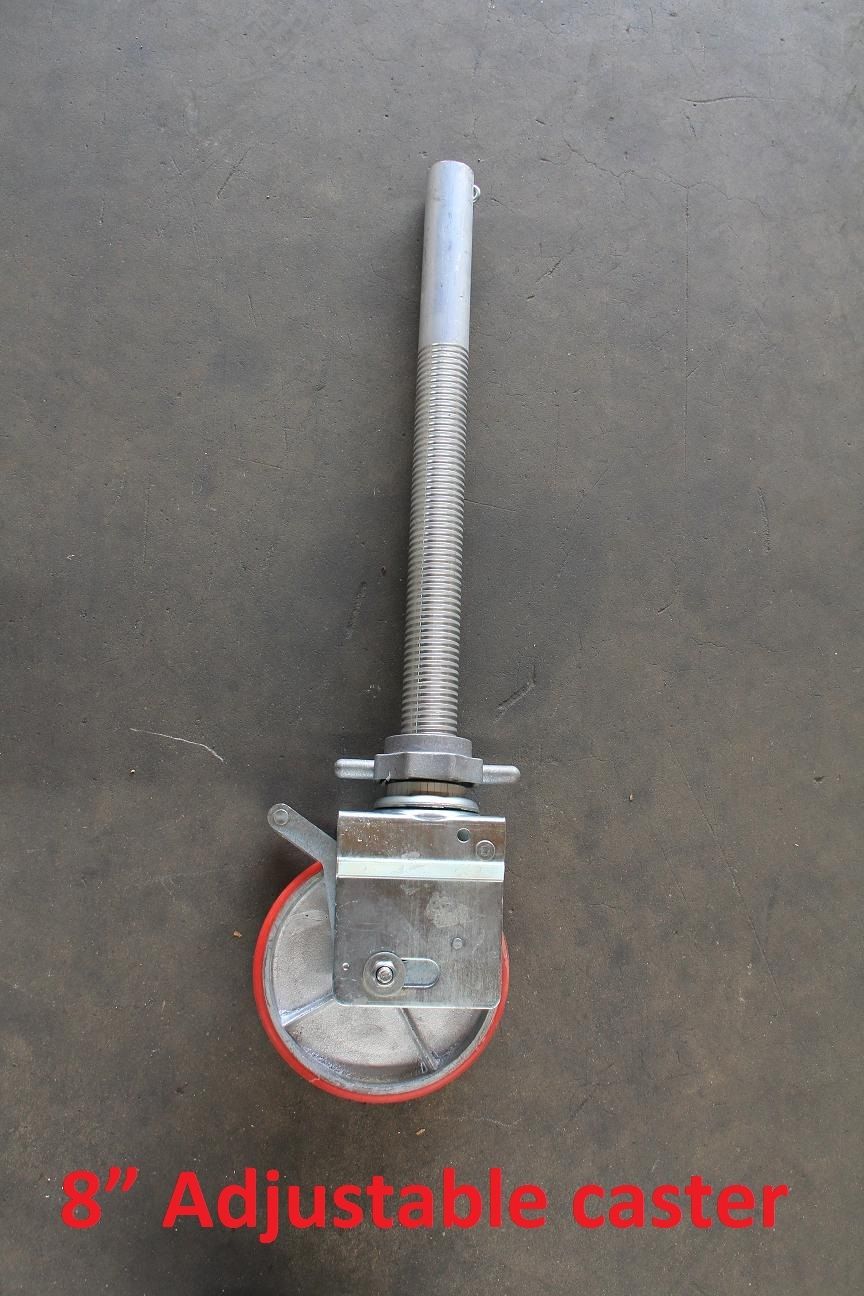

- Upgrade to 8" adjustable castors

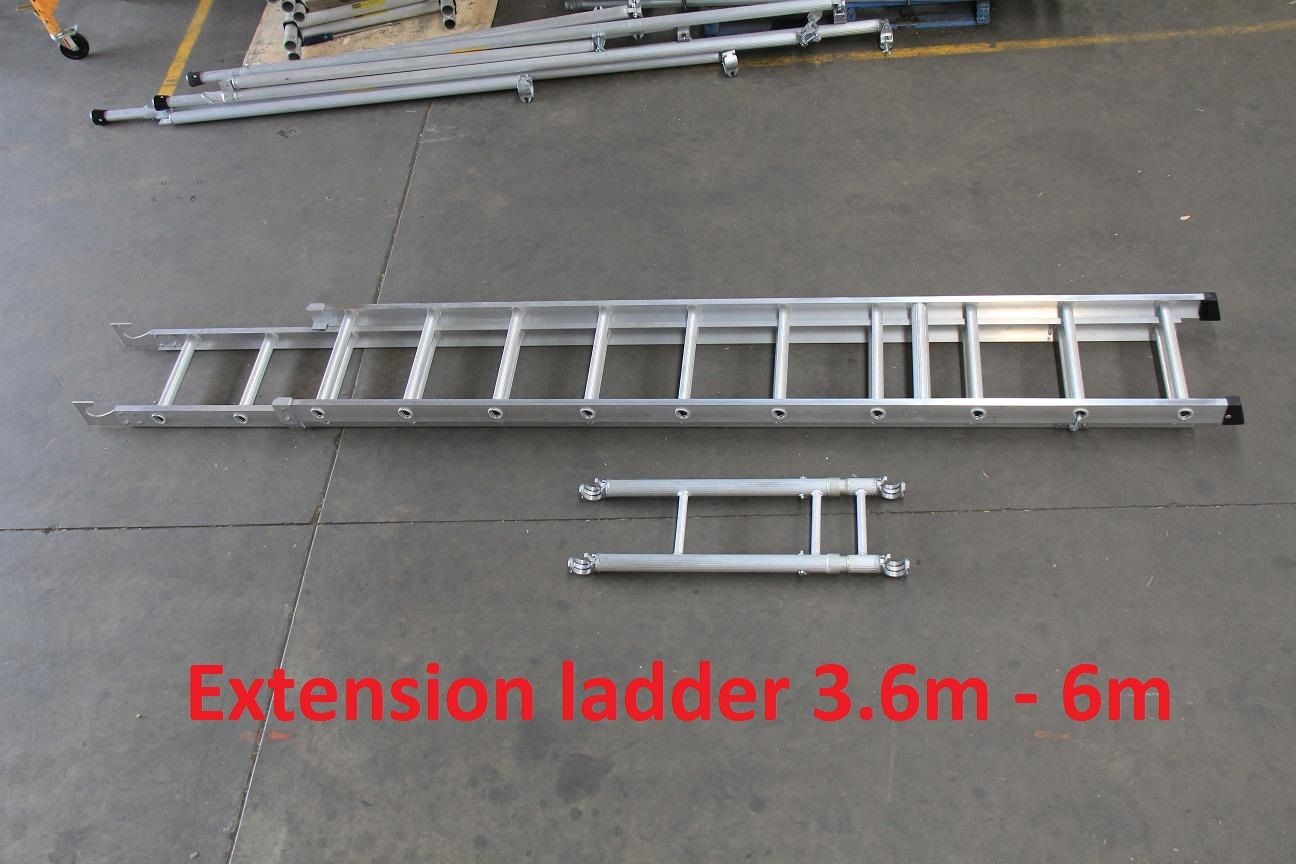

- Extension ladder with bracket, Fold to 3.6m extend to 6m
- 4m Extendable Ladder with bracket
- No.T4 2442x1166mm toe board Set
- 2 more Extendable Stabiliser
- Diagonal Brace (DB)
- Horizontal Brace (HB)
- Bottom Brace (BB)
- Skid proof deck without hatch 2495x540mm
- Skid proof deck with hatch 2495x540mm
