SINGLE WIDTH SCAFFOLD0.74m Wide X 2m Long
- Standard: ISO 9001:2000 (No. 0203Q15774R1M)
- Australian Standard: AS/NZS 1576.1:1995
- SGS Test Certificate: SC08120053 (International Top Quality Test Organisation)
- NSW Work Cover for Full Set configuration reciprocal to other states
- Material: Aluminium Alloy 6005-T5 with tube 51.8x2.5mm
- Safety work load: 225Kg per platform evenly distributed 450Kg per complete structure.
- 3 year manufacture guarantee on all parts
PRE-CONFIGURE SETS
Customers are welcome to make their own configuration to meet their required working height. Please contact us for a free quote today!

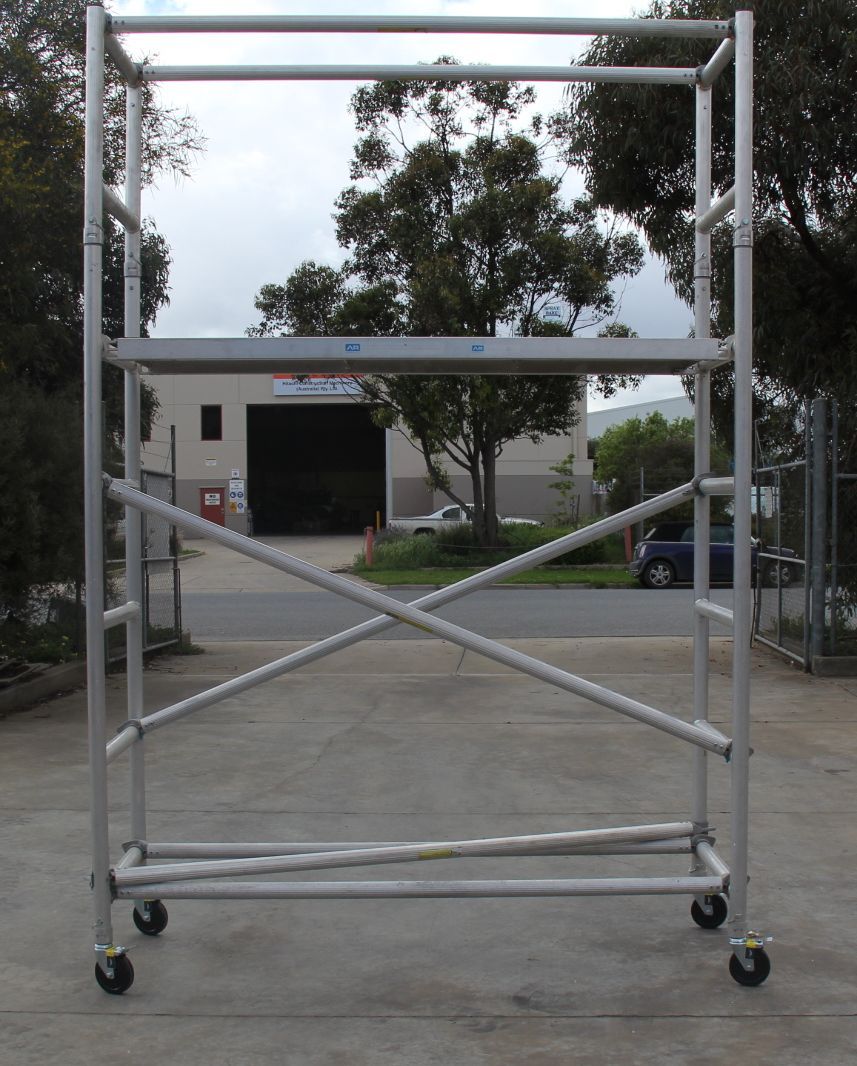

SCAFFOLD HS-01
Scaffold max size: 0.733W x 2.0L x 2.8H (m)Platform standing height Max: 2m

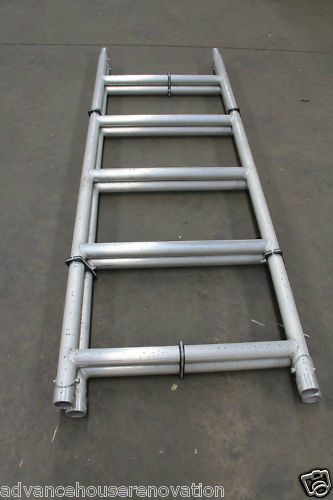

- 2x0.73x2.0 Ladder Frame

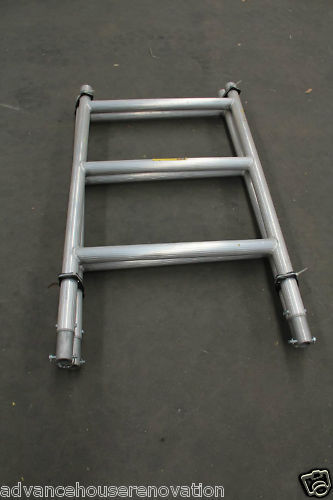

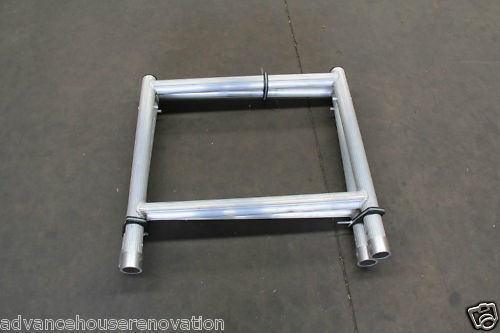

- 2x0.73x0.7m Guard Rail

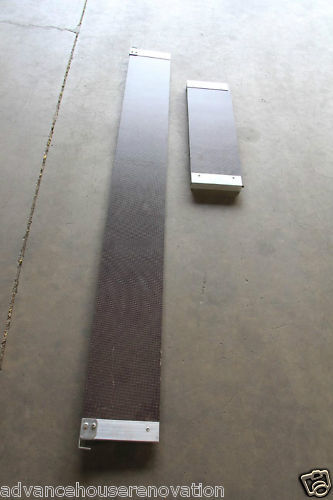

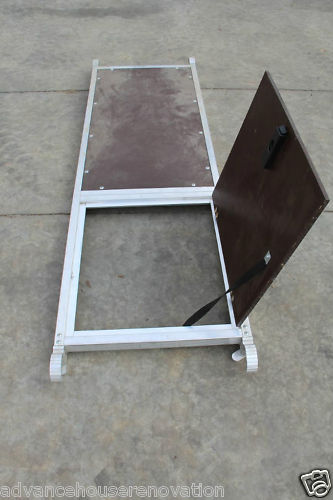

- 1xSkid proof deck with hatch 1900x540x120

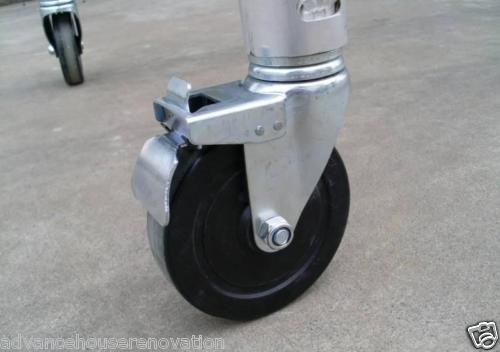

- 4x5" lockable caster wheel
- 4xHorizontal Brace
- 2xDiagonal Brace
- 1xBottom Brace

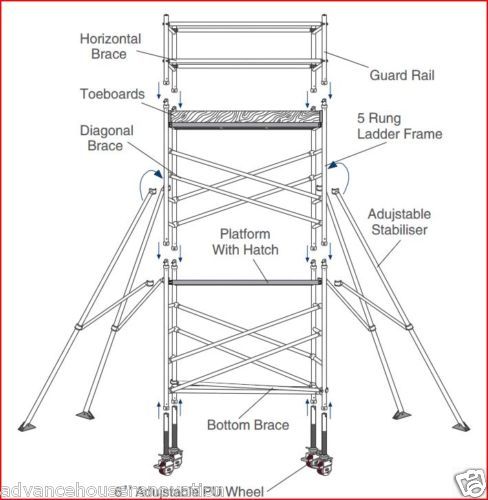

SCAFFOLD HS-05
Scaffold max size: 0.733W x 2.0L x 5.25H (m)Platform standing height Max: 4.35m
- 4x 0.733x2m Ladder Frame
- 2x 0.733x0.7m Guard Rail
- 1x Bottom Brace
- 6x Diagonal Brace
- 6x Horizontal Brace
- 2x Skid proof deck with hatch 1960x600mm

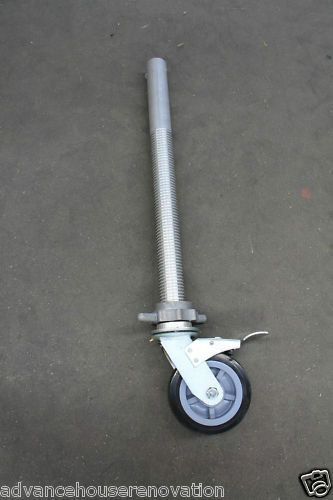

- 4x 6” Adjustable caster with thread stem
- 2x Extendable Stabiliser

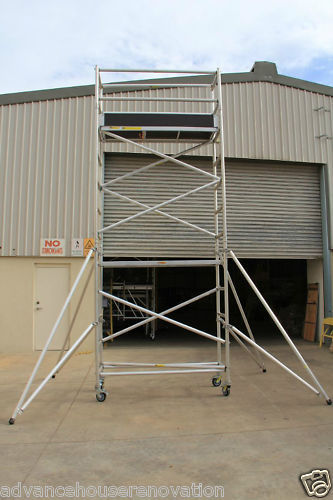

SCAFFOLD HS-06
Scaffold max size: 0.733W x 2.0L x 6.45H (m)Platform standing height Max: 4.75m
- 4x 0.733x2m Ladder Frame
- 2x 0.733x1.2m Ladder Frame
- 2x 0.733x0.7m Guard Rail
- 1x Bottom Brace
- 8x Diagonal Brace
- 6x Horizontal Brace
- 2x Skid proof deck with hatch 1960x600mm
- 4x 6” Adjustable caster with thread stem
- 2x Extendable Stabiliser
EXTRA SCAFFOLD PARTS
- Upgrade to 4x 8" Adjustable caster with thread stem
- 2 more Extedable Stabiliser
- 4m Extendable Ladder with bracket
- Extension ladder with bracket, Fold to 3.6m extend to 6m
- 1840x650mm Aluminium toe board Set

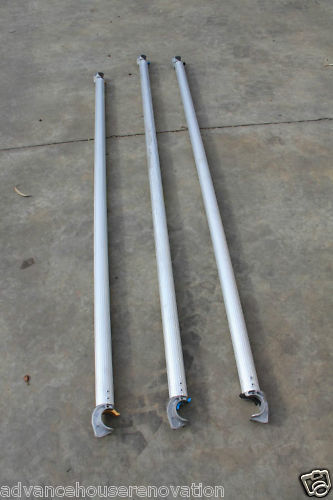

- Diagonal Brace (DB)
- Horizontal Brace (HB)
- Bottom Brace (BB)
- Skid proof deck with hatch 2495x540mm
