SINGLE WIDTH SCAFFOLD 2.5m Long

SINGLE WIDTH SCAFFOLD0.74m Wide X 2.5m Long
  • Standard: ISO 9001:2000 (No. 0203Q15774R1M)
  • Australian Standard: AS/NZS 1576.1:1995
  • SGS Test Certificate: SC08120053 (International Top Quality Test Organisation)​
  • Material: Aluminum Alloy 6005-T5 with tube 50.8x2.0mm
  • Safety work load: 225Kg per platform evenly distributed 450Kg per complete structure.
  • 3 year manufacture guarantee on all parts

PRE-CONFIGURE SETS

ustomers are welcome to make their own configuration to meet their required working height. Please contact us for a free quote today!

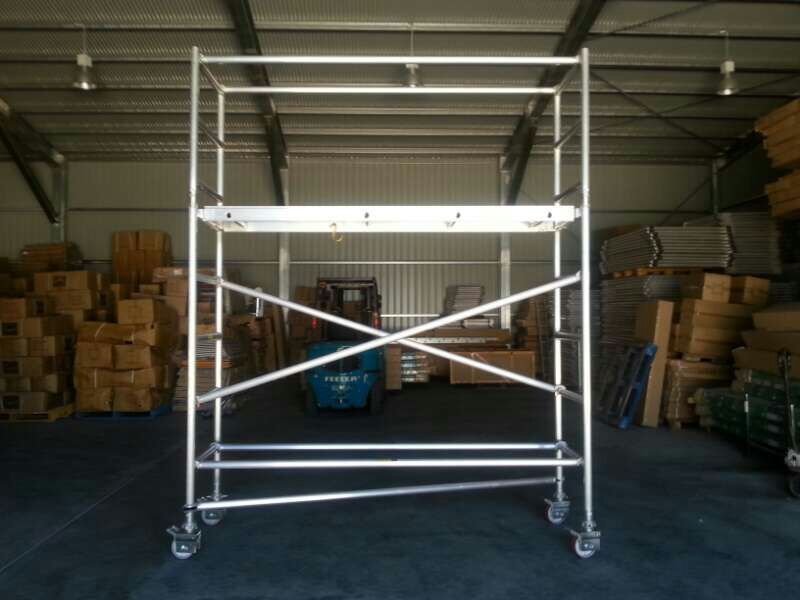

SCAFFOLD MS-323

Scaffold max size: 0.733W x 2.5L x 3.23H (m)Platform standing height Max: 2.23m

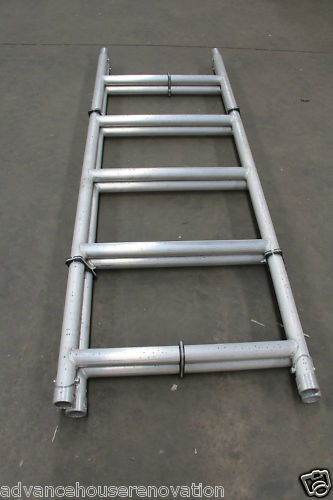

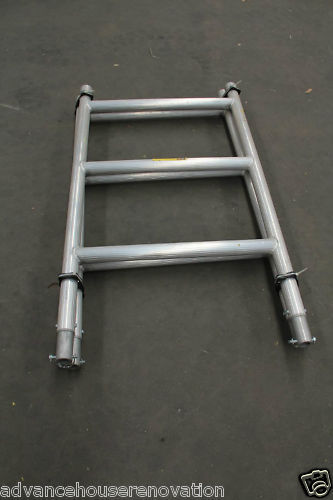

  • 2x0.73x2.0m Ladder Frame

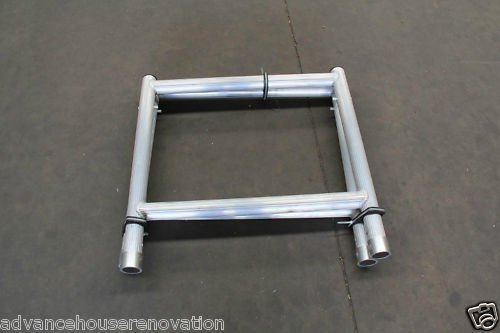

  • 2x0.73x1.0m Guard Rail
  • 1xSkid proof deck with hatch 2495x540x120

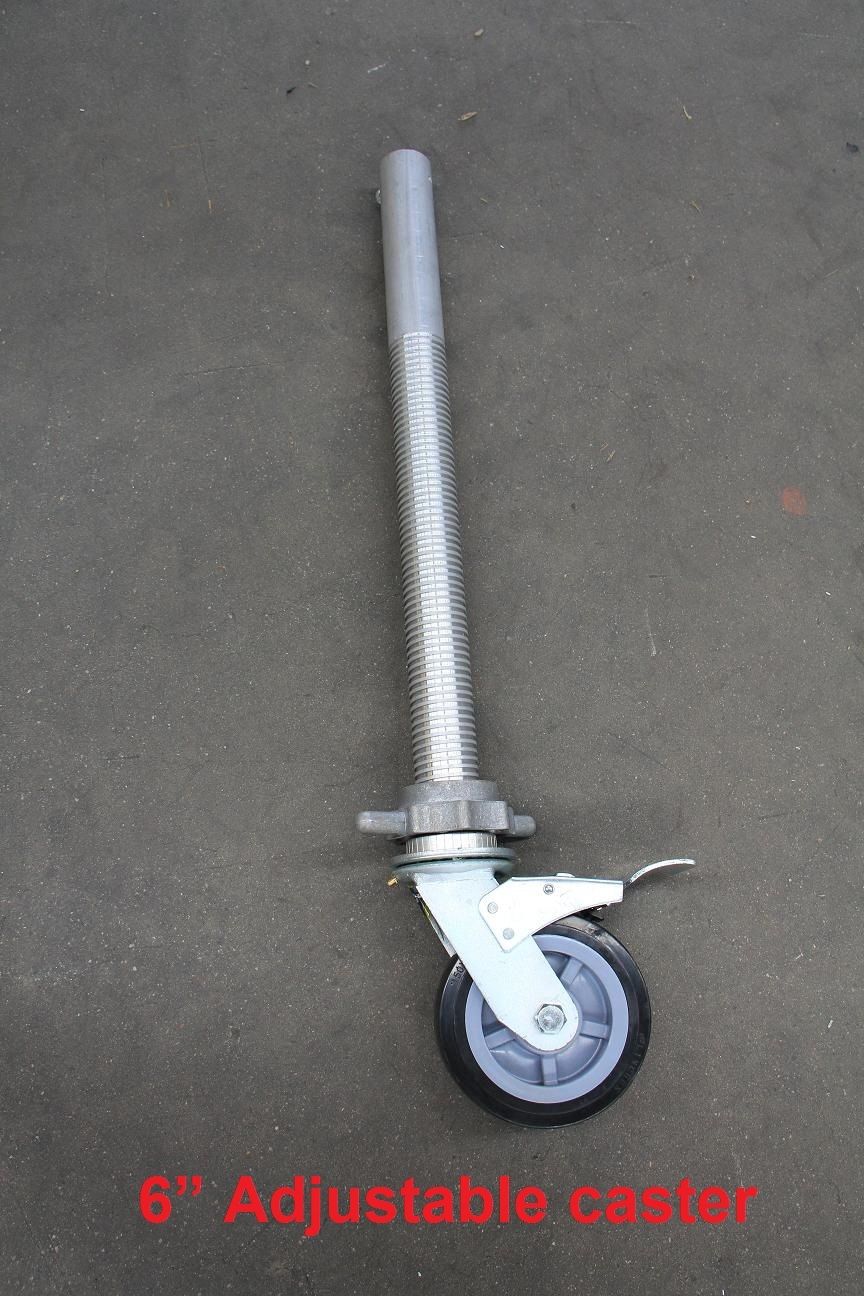

  • 4x6" Asjuable and Lockable caster wheel
  • 4xHorizontal Brace
  • 2xDiagonal Brace
  • 1xBottom Brace

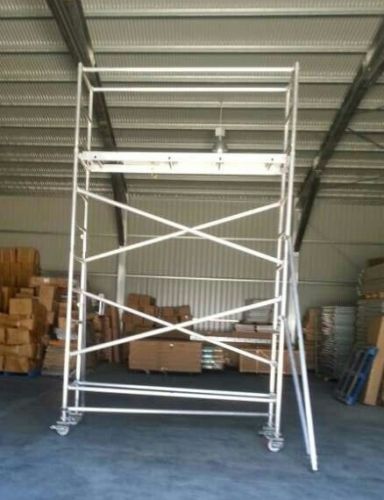

SCAFFOLD MS-453

Scaffold max size: 0.733W x 2.5L x 4.53H (m)Platform standing height Max: 3.53m
  • 2x0.73x2.0m Ladder Frame
  • 2x0.73x1.2m Ladder Frame
  • 2x0.73x1.0m Guard Rail
  • 1xSkid proof deck with hatch 2495x540x120
  • 4x6" Adjustable and Lockable caster wheel
  • 4xHorizontal Brace
  • 4xDiagonal Brace
  • 1xBottom Brace
  • 2xStabilisers

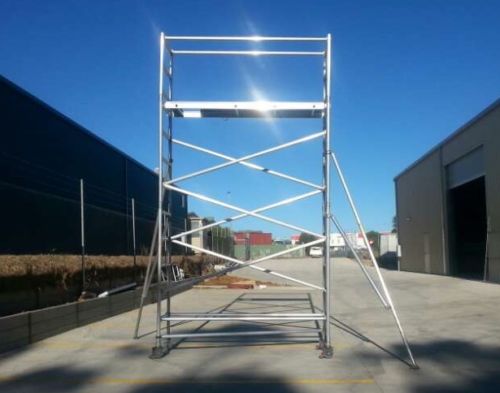

SCAFFOLD MS-493

Scaffold max size: 0.733W x 2.5L x 4.93H (m)Platform standing height Max: 3.93m
  • 2x0.73x2.0m Ladder Frame
  • 2x0.73x1.6m Ladder Frame
  • 2x0.73x1.0m Guard Rail
  • 1xSkid proof deck with hatch 2495x540x120
  • 4x6" Adjustable and Lockable caster wheel
  • 4xHorizontal Brace
  • 6xDiagonal Brace
  • 1xBottom Brace
  • 2xStabilisers

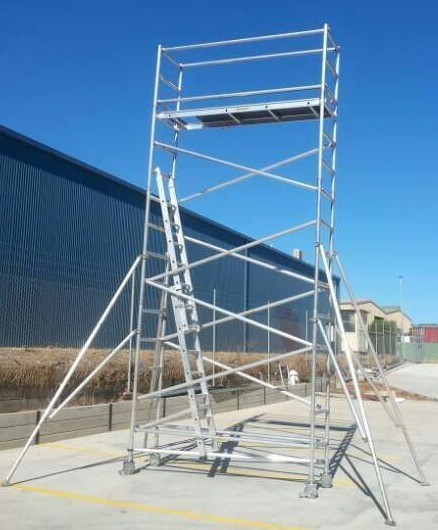

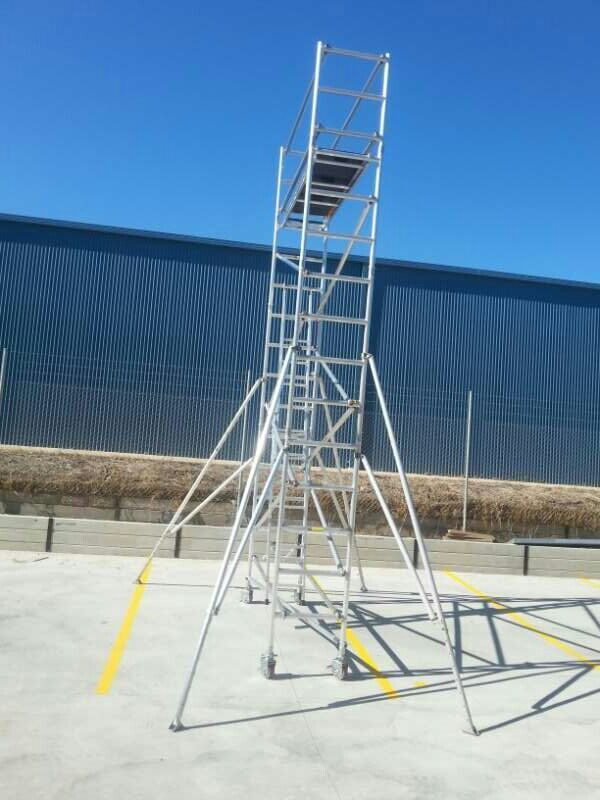

SCAFFOLD MS-623

Scaffold max size: 0.733W x 2.5L x 6.23H (m)Platform standing height Max: 5.23m
  • 4x0.73x2.0m Ladder Frame
  • 2x0.73x1.2m Ladder Frame
  • 2x0.73x1.0m Guard Rail
  • 1xSkid proof deck with hatch 2495x540x120
  • 4x6" Adjustable and Lockable caster wheel
  • 6xHorizontal Brace
  • 8xDiagonal Brace
  • 1xBottom Brace
  • 4xStabilisers
  • 1x2.7m to 4m Extendable ladder
  • 1x Toeboard set​

EXTRA SCAFFOLD PARTS

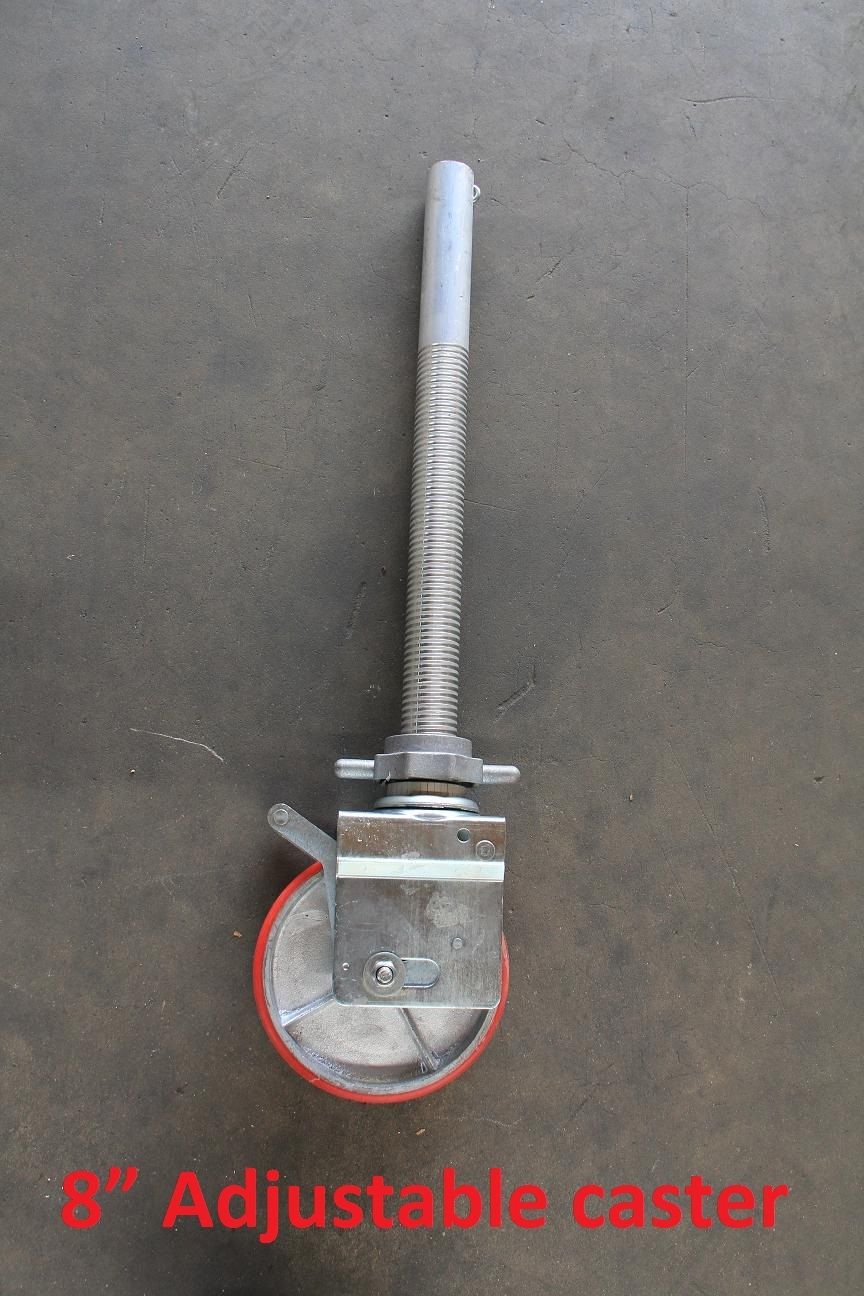

  • Upgrade to 4x 8" Adjustable caster with thread stem

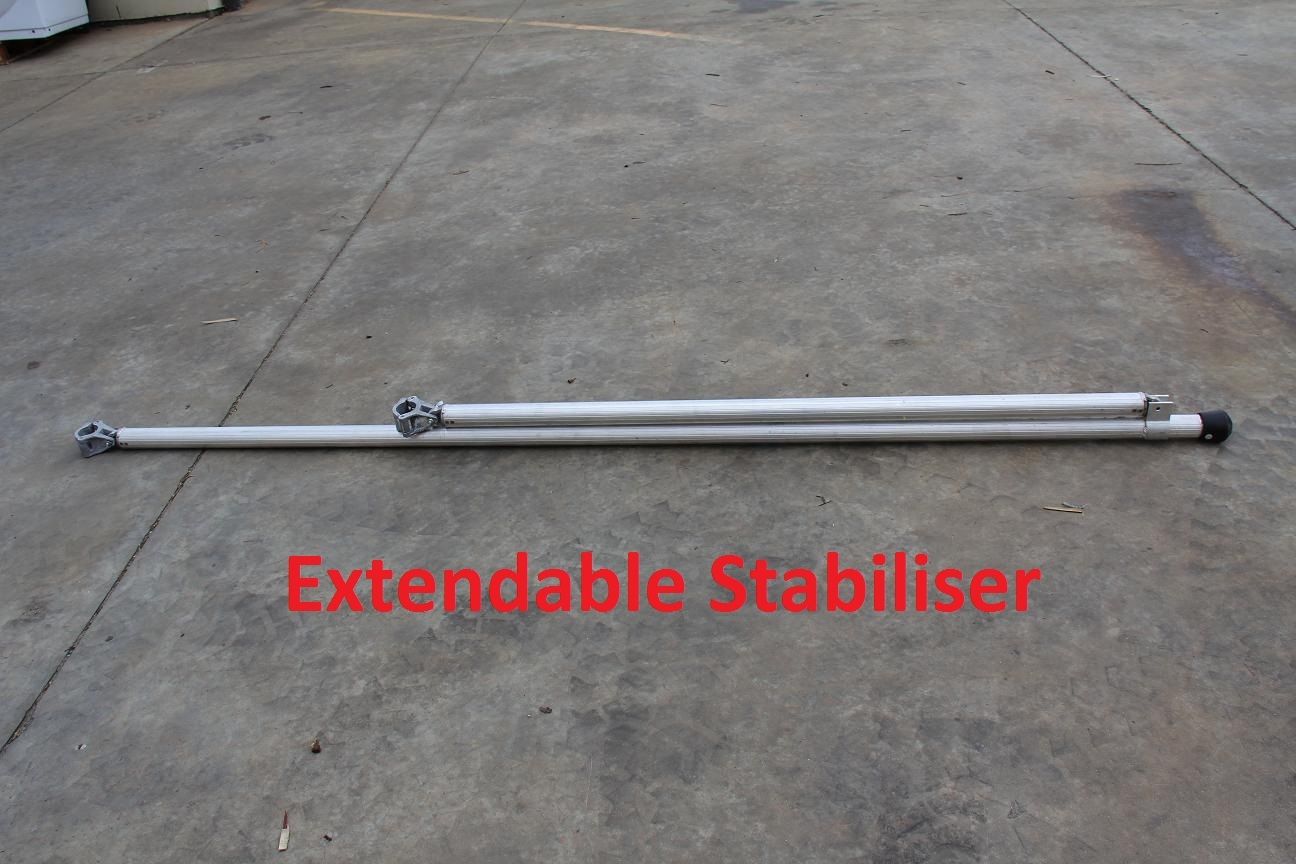

  • 2 more Extedable Stabiliser
  • 4m Extendable Ladder with bracket

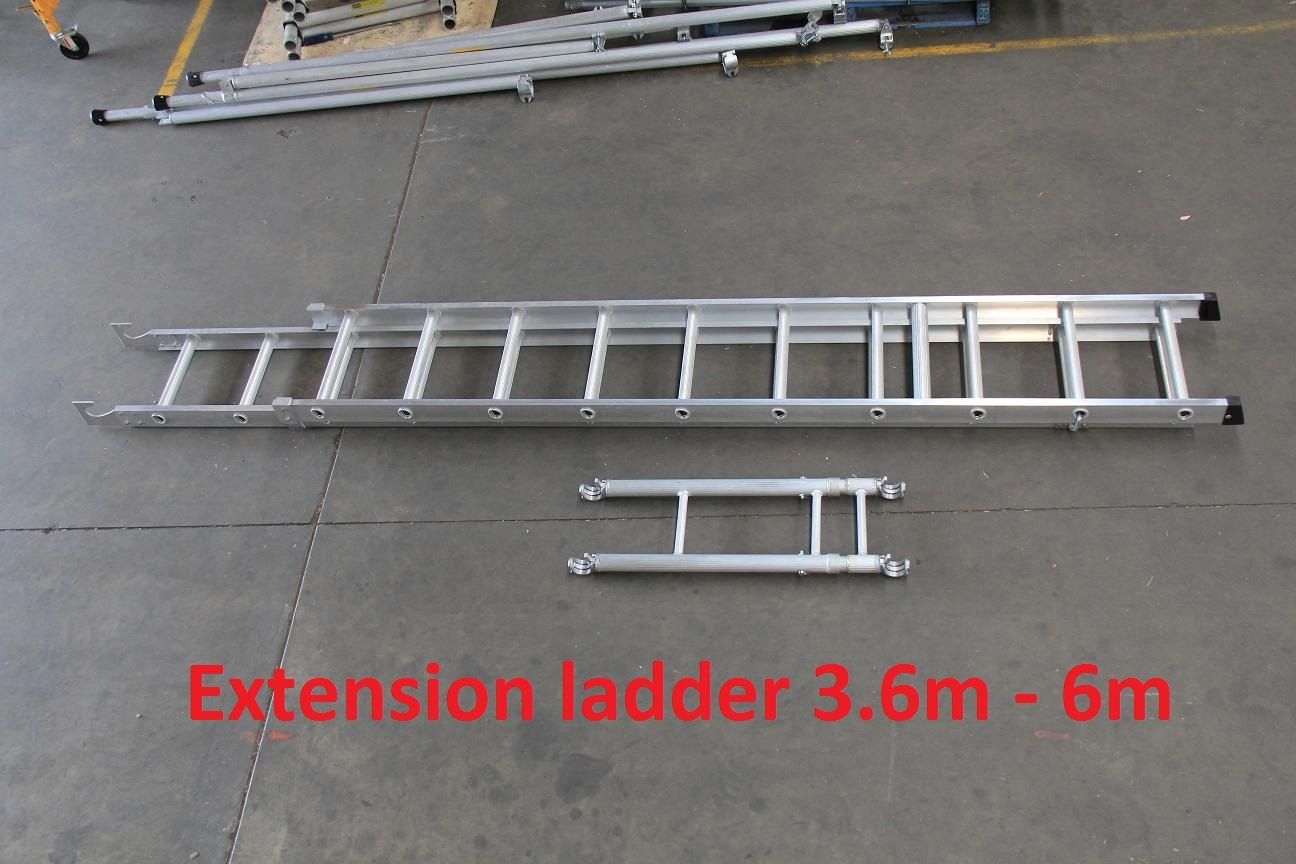

  • Extension ladder with bracket, Fold to 3.6m extend to 6m

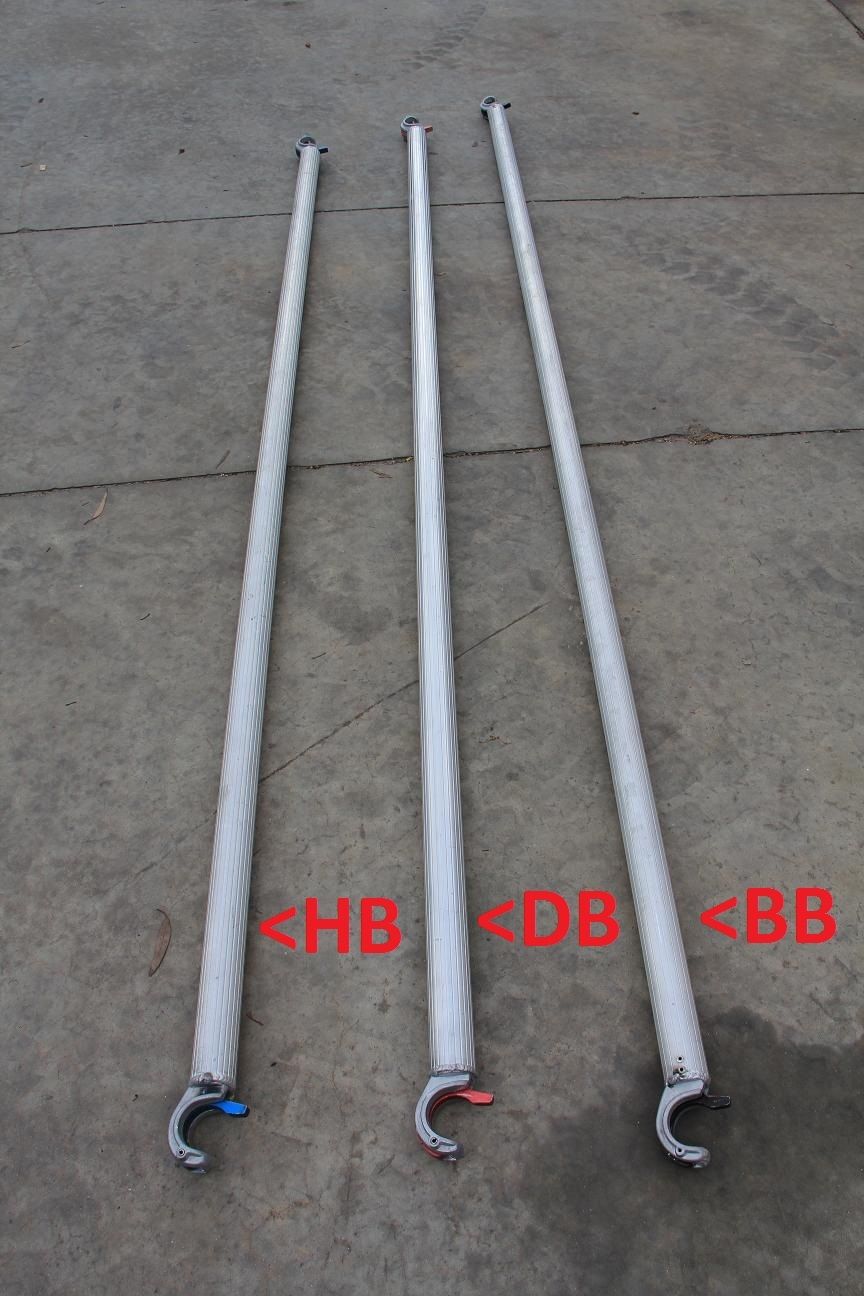

  • Diagonal Brace (DB)
  • Horizontal Brace (HB)
  • Bottom Brace (BB)

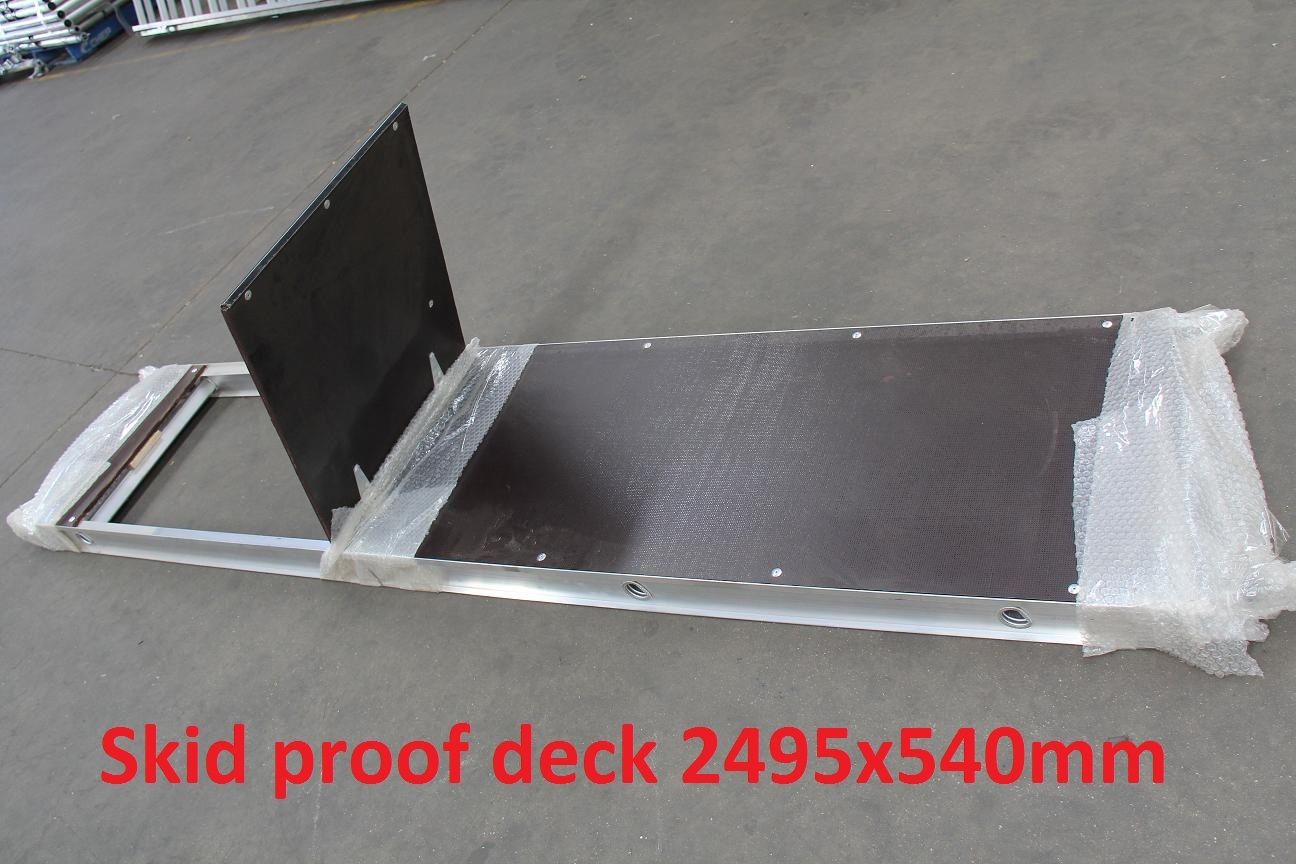

  • Skid proof deck with hatch 2495x540mm
